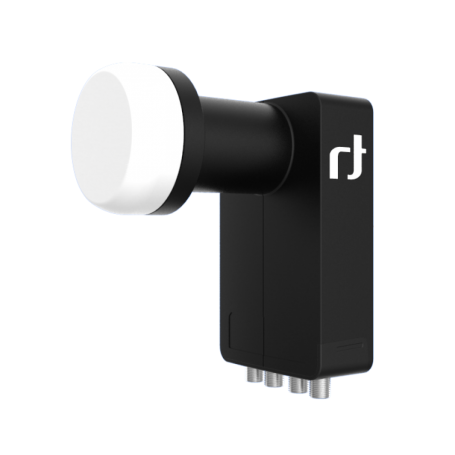

LNB 4 USCITE INVERTO

LNB 4 USCITE

Technical specifications
Low band input frequency range	10.7 GHz ~ 11.7 GHz
Low band output frequency range	950 MHz ~ 1950 MHz
Low band LO frequency	9.75 GHz
High band input frequency range	11.7 GHz ~ 12.75 GHz
High band output frequency range	1100 ~ 2150 MHz
High band LO frequency	10.6 GHz
Noise figure	0.2 dB typ. (0.7 dB Max.)
LO temperature drift	± 3.0 MHz max.
LO initial accuracy	± 1.0 MHz max.
LO phase noise @ 10 kHz	-90 dBc/Hz
Conversion gain	60 dB min.
Gain ripple (over 26 MHz bandwidth)	± 0.75 dB
Gain variation (over full band)	± 4 dB max.
Image rejection	40 dB min.
1 dB compression point (@ output)	0.0 dBm min.
Cross talk	22 dB min.
Control signal Ca (V)	11.0 V ~ 14.0 V
Control signal Cb (H)	16.0 V ~ 20.0 V
Control signal Cc (band switching)	22 kHz ± 4 kHz
Output VSWR	2.0 : 1
In band spurious level	-60 dBm max.
Current consumption	200 mA max. (11 VDC ~ 20 VDC)
Operating temperature	-30 °C ~ +60 °C
Output impedance	75 Ω (F-type)
Output connector type	F-Type (female)
Weight	344 g
