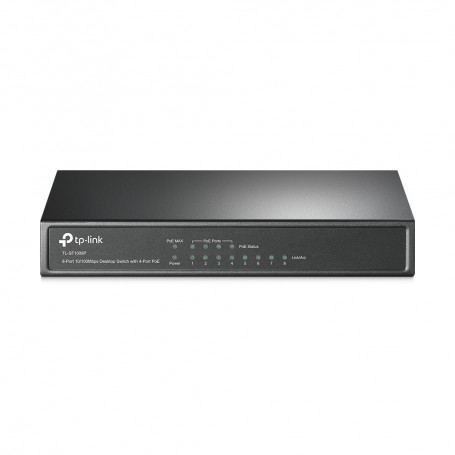

SWITCH ETHERNET TP-LINK 8 PORTE 10/100 4 PORTE POE
- Dispone di 4 porte PoE, trasmette alimentazione elettrica e dati su un singolo cavo Ethernet
- Compatibile con i PDs IEEE 802.3af, espande la rete domestica e aziendale
- Non richiede configurazione o installazione
- Supporta alimentazione PoE fino a 15.4W per ogni porta PoE.
- Supporta alimentazione PoE fino a 57W per tutte le porte PoE.
Descrizione
CARATTERISTICHE SOFTWARE | |
---|---|
Metodo di trasmissione | Store-And-Forward |
Funzionalità avanzate | Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
ALTRO | |
---|---|
Certificazione | FCC, CE, RoHS |
Contenuto della confezione | TL-SF1008P, Power Adapter, User Guide |
Consumo | 2.3 watts (max. no PD connected) 59.3 watts (max. with 57w PD connected) |
Ambiente | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
CARATTERISTICHE HARDWARE | |
---|---|
Interfaccia | 8 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Numero ventole | Fanless |
Physical security lock | Yes |
Consumo energetico | Maximum (PoE on): 60.2W (220V/50Hz) Maximum (PoE off): 3.2W (220V/50Hz) |
Alimentatore esterno | External Power Adapter(Output: 48VDC / 1.25A) |
Packet Forwarding Rate | 1.1904 Mpps |
Porte PoE | Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 57W |
Backbound bandwidth | 1.6Gbps |
Tabella ARP | 2K |
Jumbo frame | 2 KB |
Capacità di switching | 1.6 Gbps |
Dimensioni ( L x P x A ) | 6.7*3.9*1.1 in. (171*98*27 mm) |
Max Power Consumption | 2.27 W (220 V/ 50 Hz. no PD connected) 75.33 W (220 V/ 50 Hz. with 66 W PD connected) |
Max Heat Dissipation | 7.74 BTU/h(no PD connected) 256.88 BTU/h(with 66 W PD connected) |
Scheda tecnica
TL-SF1008P
