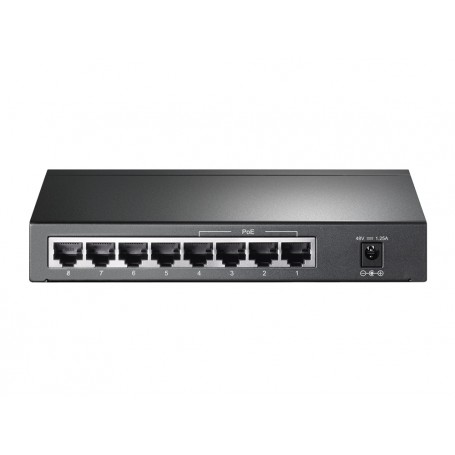

SWITCH ETHERNET TP-LINK 8 PORTE DI CUI 4 GIGABIT POE

TL-SG1008P
Switch Desktop Gigabit 8 porte, 4 porte PoE
  • Dispone di 4 porte PoE, trasmette alimentazione elettrica e dati su un singolo cavo Ethernet
  • Compatibile con i PDs IEEE 802.3af, espande la rete domestica e aziendale
  • Non richiede configurazione o installazione
  • 802.1p/DSCP QoS
  • Supporta alimentazione PoE fino a 15.4W per ogni porta PoE, 55W power budget totale per tutte le porte PoE

Descrizione

CARATTERISTICHE SOFTWARE
Metodo di trasmissione Store-And-Forward
Funzionalità avanzate Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS

ALTRO
Certificazione CE, FCC, RoHS
Contenuto della confezione TL-SG1008P, Power Adapter, Installation Guide
Consumo 65.2W (max. with 55w PoE device connected)
5.5W (max. no PoE device connected)
Ambiente Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
CARATTERISTICHE HARDWARE
Interfaccia 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Numero ventole Fanless
Physical security lock No
Consumo energetico 65.2W (max. with 55w PoE device connected)
5.5W (max. no PoE device connected)
Alimentatore esterno External Power Adapter(Output: 48VDC / 1.25A)
Porte PoE Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 55W
Backbound bandwidth 16Gbps
Tabella ARP 4K
Dimensioni ( L x P x A ) 171*98*27 mm
Max Power Consumption 5.49W(220/50Hz. no PD connected)
65.24W(220/50Hz. with 55W PD connected)
Max Heat Dissipation 18.73BTU/h(no PD connected)
222.60BTU/h(with 55W PD connected)

Scheda tecnica

TL-SG1008P
