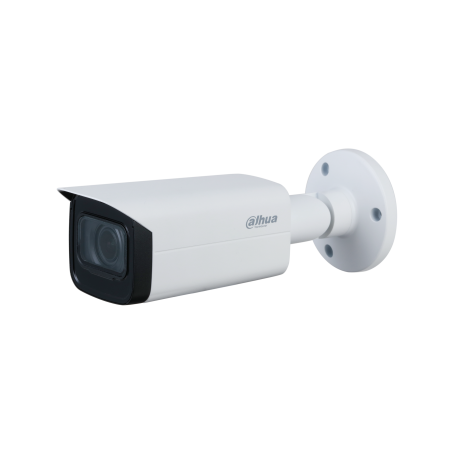

TELECAMERA BULLET VARIFOCALE 2 MPx

Gain Control Auto; manual
Noise Reduction 3D NR
Smart IR Yes
Mirror Yes
Privacy Masking Off/On (8 area, rectangle)
Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC
port (DIP Switch)
Audio Input One channel built-in mic
Power
Power Supply 12V ±30% DC
Power Consumption Max 9.4 W (12 VDC, IR on)
Environment
Operating Temperature –30 °C to +60 °C (-22 °F to 140 °F); 95% (non-
condensation)
Storage Temperature –30 °C to +60 °C (-22 °F to 140 °F); ﹤95% (non-
condensation)
Protection Grade IP67
Structure
Casing Metal throughout the whole casing
Camera Dimensions 244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56")
Net Weight 0.79 kg (1.7 lb)
Gross Weight 1.07 kg (2.4 lb)
Pro Series | DH-HAC-HFW2241TU-Z-A
Technical Specification
Camera
Image Sensor 2MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Pixel 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
S/N Ratio >65 dB
Min. Illumination 0.001 lux/F1.5, 30 IRE, 0 lux IR on
Illumination Distance 80 m (262.5 ft)
Illuminator On/Off Control Auto
Illuminator Number 4 (IR light)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Motorized Vari-focal
Auto Focus Yes
Mount Type φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Field of View
Diagonal: 131°–35°
Horizontal: 108°–30°
Vertical: 56°–17°
Iris Type Fixed
Close Focus Distance 0.8 m (2.6 ft )
DORI Distance
2.7 mm: D: 44.1 m (144.7 ft); O: 17.6 m (57.7 ft); R: 8.8 m
(28.9 ft); I: 4.4 m (14.4 ft)
13.5 mm: D: 144.8 m (475.1 ft); O: 57.9 m (190 ft); R:
28.9 m (94.8 ft); I: 14.8 m (48.6 ft)
Video
Frame Rate
CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960 × 576H;
NTSC: 960 × 480H;
Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/WDR/HLC
WDR 130 dB
White Balance Auto/Area W
